15V145A power supply for S5 miner 22T
| Part No.: | AP306 |
| Power Supply Type: | Bitcoin Miner Power Supply |
| Special Feature: | ZhongTian S5 Miner Power Supply AP306 Applications: ZT S5 bitcoin miner 22T |
Electrical characteristics
| Input | Output | |||
| Rated voltage | 200~240Vac | Voltage | 5Vdc | 12Vdc |
| Voltage range | 180-280V AC | Current | 145Amp | |
| Frequency | 50Hz/60Hz ± 5% | Regulation | ±1% | ±3% |
| Efficiency | ≥93% | Ripple and noise | ≤200 | |
| Leakage current | ||||
Safety characteristics
| Safety standard | ||
| Safety | EN55022 ,GB4943-1995 | |
| EMC | CE | EN55022, CLASS B |
| RE | EN55011,CLASSB | |
| Withstand voltage | |
| Input-output Withstand voltage | 1500V AC |
| Input-FG Withstand voltage | 1500Vac/10mA/1min |
| Input-Signal Withstand voltage | |
| Output-FG Withstand voltage | 500Vac/5mA/1min |
| Output-Signal Withstand voltage | |
Operating Environment
| Operating Temperature | -40~+55 |
| Relative Humidity | 0%—85%0%—95% |
| Storage temp. | -40~+85 |
| Cooling | forced air cooling |

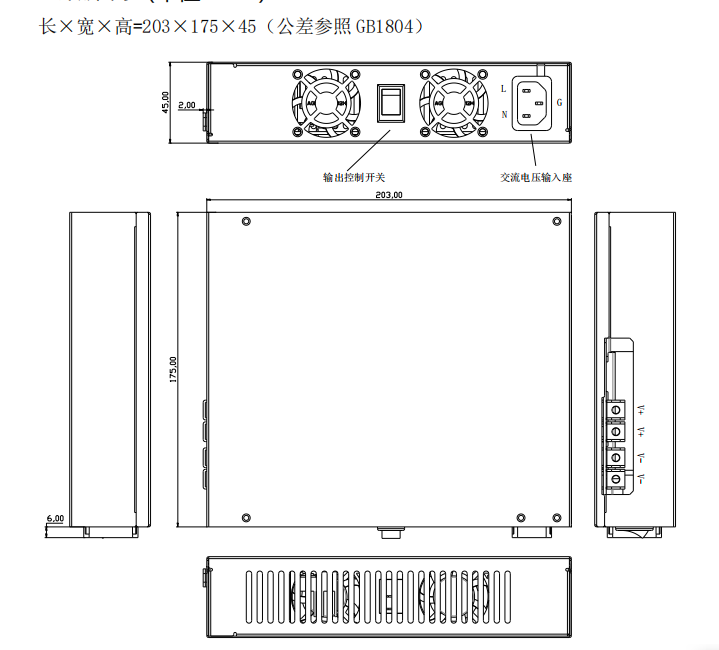

Structure drawing
