1800W Power Supply for Bitcoin Miner S9 L3+ Z11

Part No.:

AP288_

Power Supply Type:

Bitcoin Miner Power Supply

Special Feature:

Apluspower 1800W Power Supply AP288 for Bitcoin Miner S9 L3+ Z11

High quality industrial grade electronic parts&components to promise 24 hours long time working
-100%New
-Effciency 93~94%
-Including 10 pcs 6pin PCIE connectors
-Six months warranty

-Input: 200-300Vac

-Output: 12V DC 140Amp

-Applications: btc miner, antminer, INNOSILCON, WAHTSMINER, Bitminer

Electrical characteristics

Input		Output
Rated voltage		Voltage	11.64-12.36V
Voltage range	176-264V	Current	140A
Frequency	47~63Hz	Regulation	+-3%
Efficiency	>=92%	Ripple and noise	<=350Vp-p
Efficiency	>=92%	Leakage current	≤3.5mA

Safety characteristics

Safety standard
Safety		EN60950-1
EMC	CE	EN55022 PASS，6dB margin
	RE	EN55022 PASS，6dB margin

Withstand voltage
Input-output Withstand voltage	2000Vac/10mA/1min
Input-FG Withstand voltage	1800Vac/10mA/1min
Input-Signal Withstand voltage
Output-FG Withstand voltage	500Vac/10mA/1min
Output-Signal Withstand voltage

Operating Environment

Operating Temperature	-40~+55
Relative Humidity	-40~85
Storage temp.	-40~+85
Cooling	forced air cooling

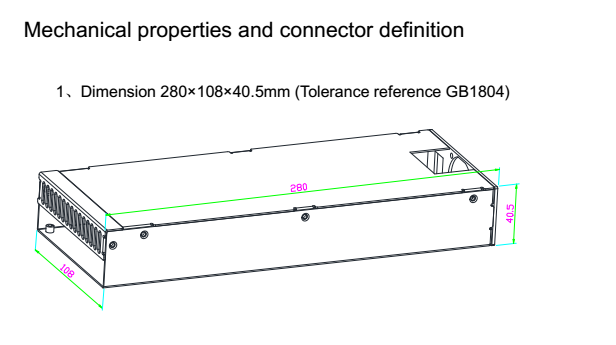

Structure drawing
