Electric power supply-AP125
| Part No.: | AP125 |
| Power Supply Type: | Electric Power Supply |
| Special Feature: | 1. For protection devices; 4 outputs. 2.High efficiency, stable output voltage, high reliability, etc. 3.With output over-temperature protection and output over-current/over-voltage /short-circuit protection, etc.
|
Electrical characteristics
| Input | Output | |||||
| Rated voltage | 100~240vac/100~240vDc | Voltage | 5V | 12V | -12V | 24V |
| Voltage range | 85~265vac/100~370vac | Current | 4A | 0.2A | 0.2A | 1A |
| Frequency | 50Hz/60Hz ± 5% | Regulation | -2%~5% | ±2.5% | ±2.5% | ±5% |
| Efficiency | ≥60% | Ripple and noise | ≤50mVp-p | ≤100mVp-p | ≤100mVp-p | ≤200mVp-p |
| Leakage current | ≤3.5mA | |||||
Safety characteristics
| Safety standard | ||
| Safety | IEC60950, EN60950, GB4943, EN61010-1 | |
| EMC | CE | EN55022, CLASS B |
| RE | EN55022, CLASS B | |
| Withstand voltage | |
| Input-output Withstand voltage | 2000Vac/5mA/1min |
| Input-FG Withstand voltage | 2000Vac/5mA/1min |
| Input-Signal Withstand voltage | 2000Vac/5mA/1min |
| Output-FG Withstand voltage | 2000Vac/5mA/1min |
| Output-Signal Withstand voltage | 1000Vac/5mA/1min |
Operating Environment
| Operating Temperature | -10℃~+60℃ |
| Relative Humidity | 5%~95% |
| Storage temp. | -40℃ ~ +70℃ |
| Cooling | Natural convection |

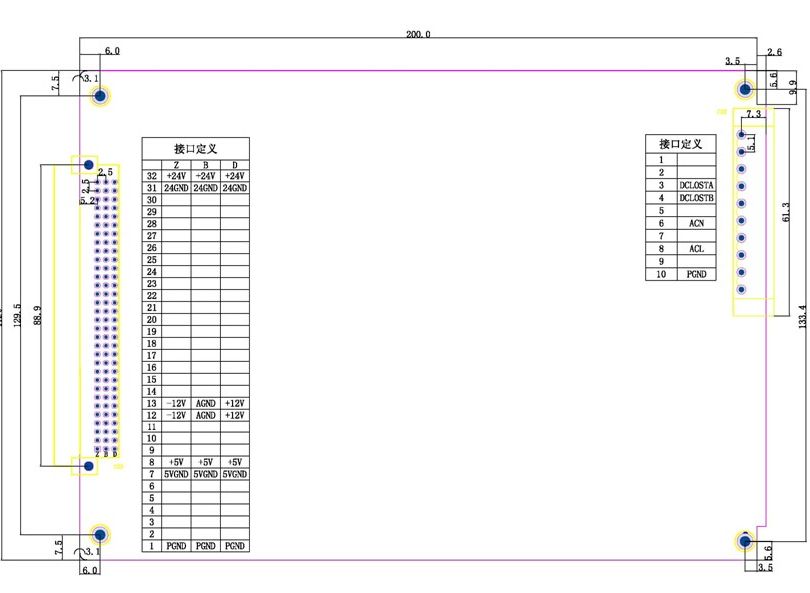

Structure drawing
