Electric power supply-AP167
| Part No.: | AP167 |
| Power Supply Type: | Electric Power Supply |
| Special Feature: | 1.For electric protection equipments；4 outputs. 2.High efficiency, stable output voltage, high reliability etc. 3.With output over-current/short-circuit protection. etc. |
Electrical characteristics
| Input | Output | |||||
| Rated voltage | 100~240vac | Voltage | 5Vdc | 12Vdc | -12Vdc | 24Vdc |
| Voltage range | 85-265 | Current | 1A | 0.1A | 0.1A | 0.3A |
| Frequency | 47~63Hz | Regulation | ±1% | ±3% | ±3% | ±5% |
| Efficiency | ≥75% | Ripple and noise | ≤50mVp-p | ≤100mVp-p | ≤100mVp-p | ≤200mVp-p |
| Leakage current | ≤3.5mA | |||||
Safety characteristics
| Safety standard | ||
| Safety | IEC60950, EN60950, GB4943, EN61010-1 | |
| EMC | CE | EN55022, CLASS B |
| RE | EN55022, CLASS B | |
| Withstand voltage | |
| Input-output Withstand voltage | 2000Vac/2mA/1min |
| Input-FG Withstand voltage | 2000Vac/2mA/1min |
| Input-Signal Withstand voltage | |
| Output-FG Withstand voltage | 2000Vac/2mA/1min |
| Output-Signal Withstand voltage | |
Operating Environment
| Operating Temperature | -15—55 |
| Relative Humidity | 5%~95% |
| Storage temp. | -40—70 |
| Cooling | Natural convection |

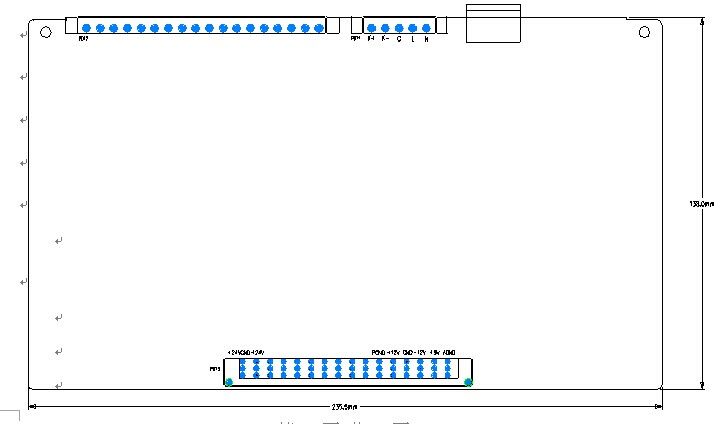

Structure drawing
