LED power supply AP043
| Part No.: | AP043 |
| Power Supply Type: | LED Power Supply |
| Special Feature: | 1.LED driver for LED displays；single output. 2.Low ripple and noise ,high efficiency, high power factor, high reliability, etc. 3.With output over-current/over-voltage/short-circuit/over-power protection. etc. |
Electrical characteristics
| Input | Output | ||
| Rated voltage | 100~240vac | Voltage | 5Vdc |
| Voltage range | 90~300Vac | Current | 30A |
| Frequency | 50Hz/60Hz ± 5% | Regulation | ±3% |
| Efficiency | ≥80% | Ripple and noise | ≤50mVP-p |
| Leakage current | ≤0.25mA | ||
Safety characteristics
| Safety standard | ||
| Safety | IEC60950,EN60950,GB4943 | |
| EMC | CE | EN55022, CLASS B |
| RE | EN55022, CLASS B | |
| Withstand voltage | |
| Input-output Withstand voltage | 3000Vac/10mA/1min |
| Input-FG Withstand voltage | 1500Vac/10mA/1min |
| Input-Signal Withstand voltage | |
| Output-FG Withstand voltage | 500Vac/10mA/1min |
| Output-Signal Withstand voltage | |
Operating Environment
| Operating Temperature | 25~75 |
| Relative Humidity | 10%~95% |
| Storage temp. | -40℃~+80℃ |
| Cooling | Natural convection |

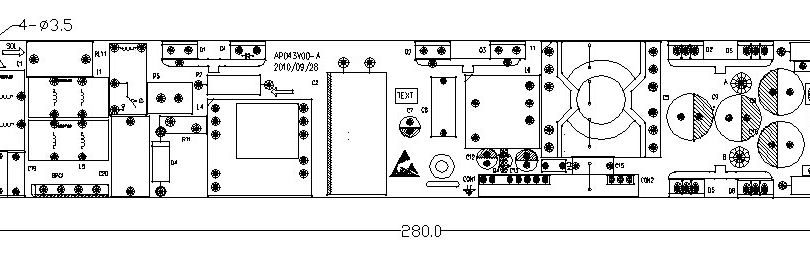

Structure drawing
