LED power supply AP047
| Part No.: | AP047 |
| Power Supply Type: | LED Power Supply |
| Special Feature: | 1.LED driver with single output 2.Low ripple and noise ,high efficiency, high power factor, high reliability, etc. 3.With over-current/over-voltage/short-circuit/over-power protection. etc.
|
Electrical characteristics
| Input | Output | ||
| Rated voltage | 100~240vac | Voltage | 45~51Vdc |
| Voltage range | 90~300Vac | Current | 3.8~4.0A |
| Frequency | 50Hz/60Hz ± 5% | Regulation | ≤±5% |
| Efficiency | ≥92% | Ripple and noise | ≤300mVp-p |
| Leakage current | ≤3.5mA | ||
Safety characteristics
| Safety standard | ||
| Safety | EN55022 ,CLASS B | |
| EMC | CE | EN55022, CLASS B |
| RE | ||
| Withstand voltage | |
| Input-output Withstand voltage | 3000Vac/10mA/1min |
| Input-FG Withstand voltage | 1500Vac/10mA/1min |
| Input-Signal Withstand voltage | |
| Output-FG Withstand voltage | 500Vac/10mA/1min |
| Output-Signal Withstand voltage | |
Operating Environment
| Operating Temperature | -20~85 |
| Relative Humidity | -40~85 |
| Storage temp. | -40~+85 |
| Cooling | Natural convection |

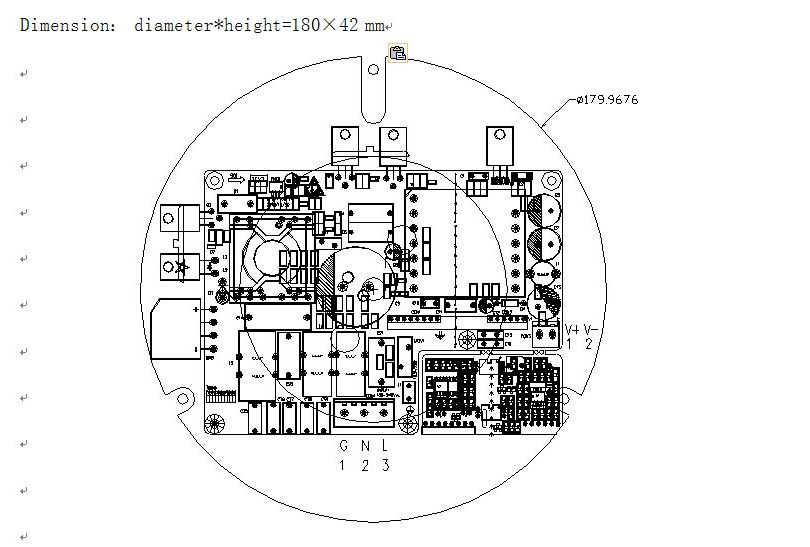

Structure drawing
