Part No.:

AP088B

Power Supply Type:

LED Power Supply

Special Feature:

LED Display Screen power supply AP088B
( 5V 200W, mini size 145*90*30mm )

1. LED driver with single output
2. Low ripple and noise, high efficiency, high power factor, high reliability, etc.
3. With over-current/over-voltage/short-circuit/over-temperature protection.

- AC input: 90~264V
- DC output: 4.6~5V 40A 200W
- Efficiency: ≥89%
- PFC: ≥0.95

Electrical characteristics

Input		Output
Rated voltage	100~240vac	Voltage	4.6~5V
Voltage range	90~264vac	Current	40A
Frequency	47~63Hz	Regulation	≤±3%
Efficiency	≥89%	Ripple and noise	≤150mVp-p
Efficiency	≥89%	Leakage current	≤3.5mA

Safety characteristics

Safety standard
Safety		UL60950，EN60950
EMC	CE	CLASS B, less than 6 dB
	RE	CLASS B, less than 6 dB

Withstand voltage
Input-output Withstand voltage	3000Vac/10mA/1min
Input-FG Withstand voltage	1500Vac/10mA/1min
Input-Signal Withstand voltage
Output-FG Withstand voltage	500Vac/10mA/1min
Output-Signal Withstand voltage

Operating Environment

Operating Temperature	-40~80
Relative Humidity	10-95
Storage temp.	-40℃~+80℃
Cooling	Natural convection

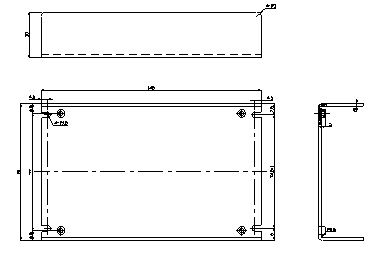

Structure drawing
