Products

Part No.:

AP096

Power Supply Type:

LED Power Supply

Special Feature:

LED Display Screen Video Wall switching power supply AP096
(5V60A 300W, mini size 235*60*35mm)

1. LED driver with single output
2. Low ripple and noise, high efficiency, high power factor, high reliability, etc.
3. With over-current/over-voltage/short-circuit/over-temperature protection.

- AC input: 90~264V
- DC output: 5V 60A 300W
- Efficiency: ≥88%
- PFC: ≥0.95

Electrical characteristics

Input		Output
Rated voltage	100~240vac	Voltage	5Vdc
Voltage range	90~264Vac	Current	60A
Frequency	47~63Hz	Regulation	≤±3%
Efficiency	≥88%	Ripple and noise	≤150mVp-p
Efficiency	≥88%	Leakage current	≤3.5mA

Safety characteristics

Safety standard
Safety		UL60950，EN60950
EMC	CE	CLASSB
	RE	CLASSB

Withstand voltage
Input-output Withstand voltage	3000Vac/10mA/1min
Input-FG Withstand voltage	1500Vac/10mA/1min
Input-Signal Withstand voltage
Output-FG Withstand voltage	500Vac/10mA/1min
Output-Signal Withstand voltage

Operating Environment

Operating Temperature	-40℃℃~85℃
Relative Humidity	10%~95%
Storage temp.	-40℃℃~80℃
Cooling	Natural convection

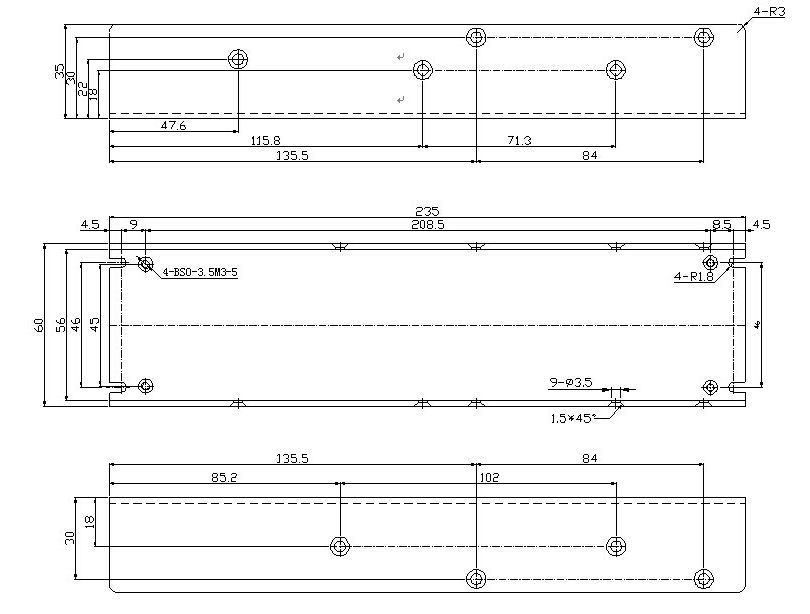

Structure drawing
