Products

Part No.:

AP039

Power Supply Type:

Telecom Power Supply

Special Feature:

1. For communication equipments; dual outputs.

2.With input and output voltage detecion, output current detecion, power working status indicator and alarm indicator, tec.

3.With input over-voltage/ under-voltage protection, output over-voltage/over-current/over-temperature protection. Suitable for the severe natural environment.

Electrical characteristics

Input		Output
Rated voltage	200~240Vac	Voltage	26Vdc	12Vdc
Voltage range	160~275Vac	Current	0~7A	0~3A
Frequency	47~63Hz	Regulation	±5%	±5%
Efficiency	≥80%	Ripple and noise	≤100mVp-p	≤100mVp-p
Efficiency	≥80%	Leakage current	≤3.5mA

Safety characteristics

Safety standard
Safety		IEC60950,EN60950,GB4943
EMC	CE	EN550012,CLASS A
	RE	EN550012,CLASS A

Withstand voltage
Input-output Withstand voltage	3000Vac/10mA/1min
Input-FG Withstand voltage	1500Vac/10mA/1min
Input-Signal Withstand voltage
Output-FG Withstand voltage	500Vac/10mA/1min
Output-Signal Withstand voltage

Operating Environment

Operating Temperature	-20℃~+60℃
Relative Humidity	20%~9%
Storage temp.	-25℃~+75℃
Cooling	Natural convection

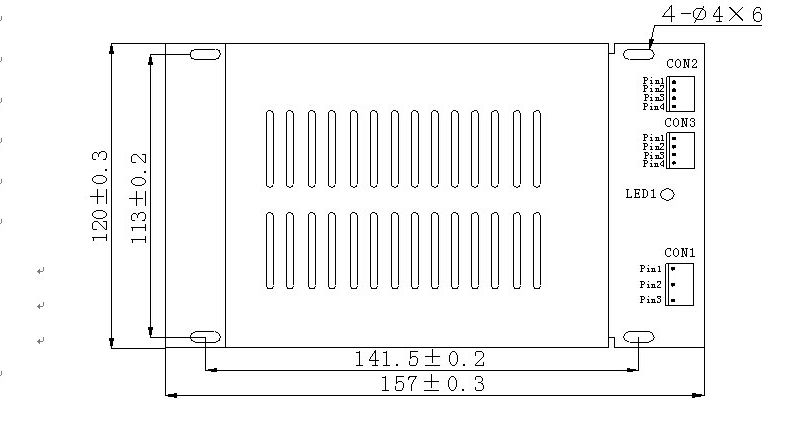

Structure drawing
