Telecom power supply-AP116
Part No.: AP116
Power Supply Type: Telecom Power Supply
Special Feature:

1. For communication equipments; Single outputs.

2.Low ripple and noise, high efficiency, high reliability, etc.

3.With over-temperature protection and output over-current/over-load/short circuit/over-voltage protection, etc.

Electrical characteristics
Input Output
Rated voltage 100~240vac Voltage 50Vdc
Voltage range 90~264Vac Current 25A
Frequency 50Hz/60Hz ± 5% Regulation ±3%
Efficiency ≥88% Ripple and noise ≤200mVp-p
Leakage current ≤3.5mA
Safety characteristics
Safety standard
Safety IEC60950,EN60950,GB4943
EMC CE EN55022,CLASSA
RE EN55022,CLASSA
Withstand voltage
Input-output Withstand voltage 2000Vac/10mA/1min
Input-FG Withstand voltage 1800Vac/10mA/1min
Input-Signal Withstand voltage
Output-FG Withstand voltage 500Vac/10mA/1min
Output-Signal Withstand voltage
Operating Environment
Operating Temperature -40~+85
Relative Humidity 10%~95%
Storage temp. -40~+85
Cooling Natural convection

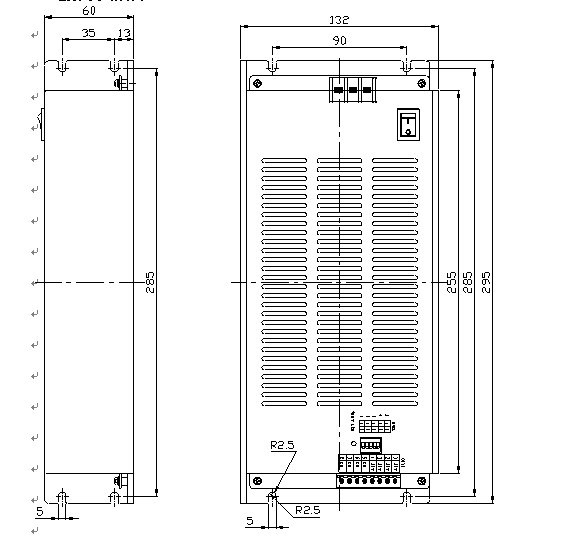

Structure drawing
